01 / Password Series

Password Locker

Code-Based Smart Storage Locker

Unlock with a code · Simple operation

Custom Codes Quick & Easy Cloud Logs

Core Features

Password Smart Locker

Set a 4–10-digit code of your choice on the touchscreen for simple, fast operation. Ideal for factories, schools, and retail stores, with no network required. Built-in self-diagnostics and exception alerts ensure reliable, secure operation.

  • 4–10-digit custom codes; store and retrieve in 30 seconds
  • Scan logs uploaded for remote data review
  • Automatic fault detection with timely alerts
  • Works fully offline—no internet required

Custom Codes

Set a 4–10-digit code of your choice; simple to use

Quick & Easy

Few steps required—one person can store or retrieve in 30 seconds

Cloud Logs

Scan logs uploaded to the cloud; review data remotely with no on-site management

Self-Diagnostics

Automatic fault detection with exception alerts to extend service life

Product Anatomy

PIN locker structure diagram: main cabinet with 8–11 inch touchscreen and service door, side cabinet with one door open (illustration)

Touchscreen

8–11" Android touchscreen with an on-screen PIN pad and simple step-by-step guidance

  • Full voice prompts throughout
  • Animated operation demos
  • Multi-language support

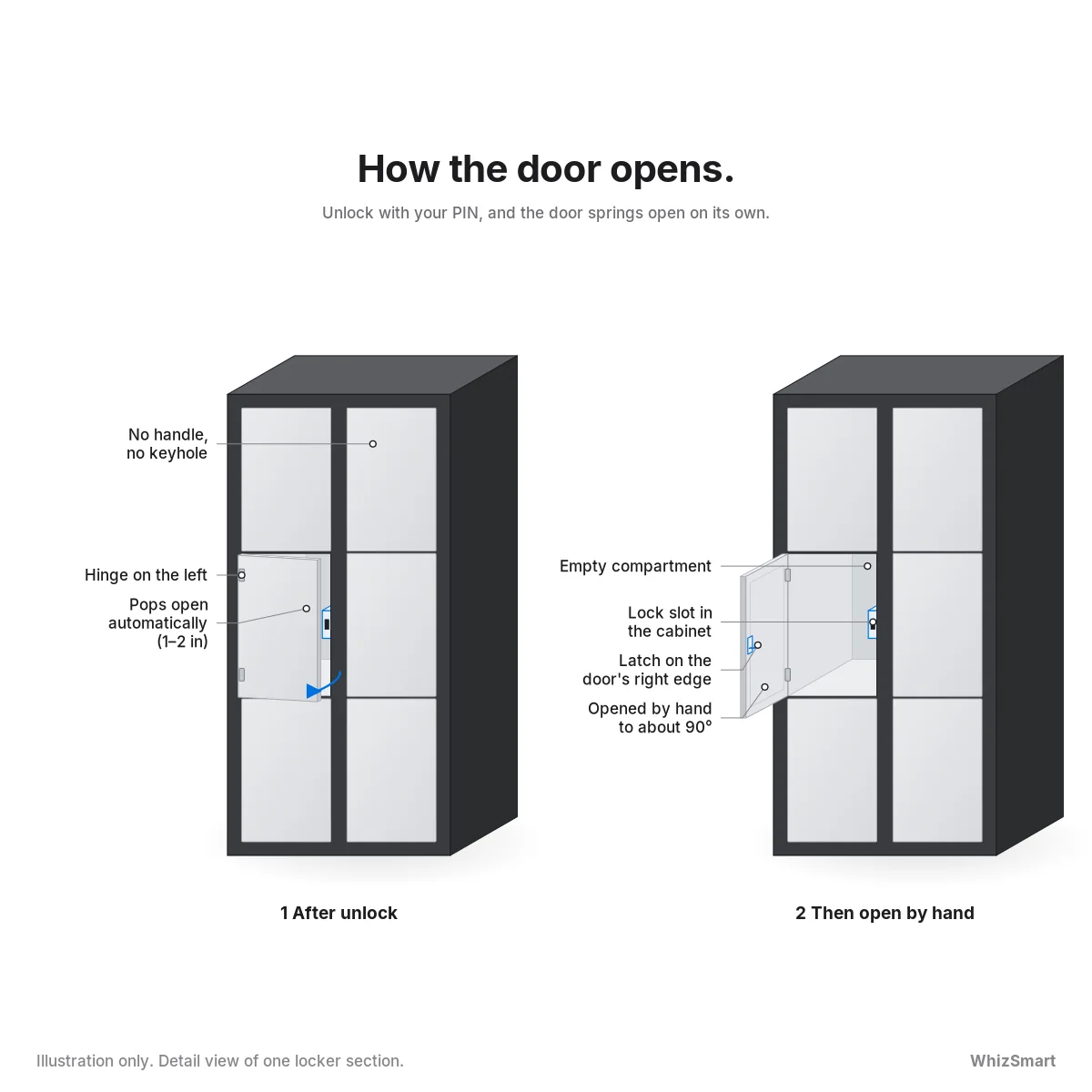

How the locker door opens: after unlocking it pops open 1–2 inches on its own, then opens by hand to about 90 degrees (illustration)

Specifications

Number of Doors
8 / 12 / 16 / 24 Doors (Optional)
Door Size
320 × 380 × 200mm, Customizable
Input Voltage
AC 220V / 50Hz
Code Length
4–10 Digits
Operation Method
PIN entry on the touchscreen
Connectivity
4G / WiFi / Ethernet
Unlock Method
4–10-digit PIN entered on the touchscreen
CPU
8-core 64-bit 1.6GHz
RAM
2GB DDR
Storage
16GB eMMC
Display
8–11-inch Android capacitive touchscreen
Resolution
1024 × 600
Aspect Ratio
16:9
Network Protocol
ONVIF / RTSP / TCP/IP / HTTP
USB 2.0
2 ports
Serial Port
RS485 + RS232 + TTL reserved
Audio
3W / 8Ω dual channel
TF Card Slot
Supported
Material
Iron / Stainless Steel / ABS Plastic (Optional)
Protection Rating
IP65 front panel waterproof
Operating Temperature
-20°C to 60°C (wide-temp design)
Overall Dimensions
W770 × D500 × H1940mm (Optional)

Use Cases

Office Buildings

Gyms

Schools

Hospitals

Request a Tailored Quotation

Tell us your scenario and requirements, and we will deliver a custom solution
