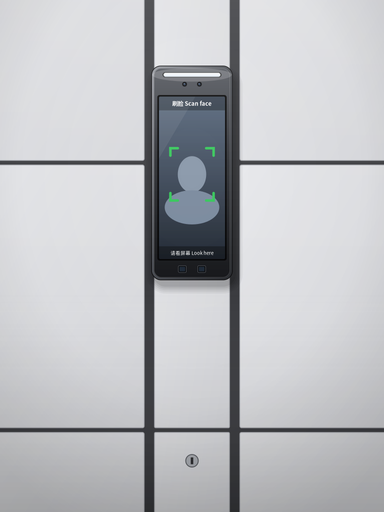

Face Recognition Locker

AI-Powered Face Recognition Smart Locker

Open with a glance · Ideal for pools and hot springs

Liveness Detection Lightning-Fast Recognition Contactless
Face Recognition Locker

Core Features

Face Recognition Smart Locker

Powered by a high-performance face recognition module, the system identifies users in 0.3 seconds. Liveness detection prevents spoofing, and the wide-dynamic-range camera adapts to any lighting condition. A simple wave opens the door—fully contactless—making it perfect for high-traffic venues such as hotels, gyms, and water parks.

  • 0.3-second recognition, open with a wave
  • Infrared liveness detection blocks photos and videos
  • Wide-dynamic camera works in backlight and low light
  • Cloud management integration with real-time monitoring

Multi-Authentication

4 unlock methods: Face recognition / Card swipe / Password / Voiceprint. Each user picks the way that fits them best.

Combination Verification

Combine any 2 factors (Card+Face, Face+Voiceprint, Card+Password) for high-security locations. Optional multi-person authentication opens the door only after all required users verify.

Anti-Spoofing Built-in

Face anti-counterfeiting enabled by default. Blocks photo, video, and 3D-mask attacks. Infrared + visible-light dual cameras verify the real person in front of the device.

Large User Capacity

Stores up to 100,000 face profiles, 10,000 voiceprints, 500,000 cards, and 500,000 event records locally. Perfect for hotels, resorts, water parks, and corporate campuses.

Offline Cache & Sync

Authentication results and linked snapshots are saved locally during network outages, then re-uploaded automatically when the connection is restored. Zero event loss.

Multi-Layer Alarms

Tamper alarm, forced-entry alarm, duress card alarm, and duress password alarm keep security staff informed the moment something goes wrong.

Multi-Protocol Network

10/100/1000 Mbps adaptive Ethernet. Supports ONVIF / RTSP / TCP/IP / HTTP for easy integration with existing security and management platforms.

Rich Physical Interfaces

1× LAN, 1× RS485, 1× Wiegand (W26/W34), 1× Type-C USB, 1× TF slot (≥64GB), 1× electric lock, 1× door magnetic, 1× exit button, 2× alarm inputs, 1× alarm output.

Product Anatomy

Click a hotspot to learn more

Face Locker Structure Diagram
Dual-Lens Camera
AI Processing Chip
Touch Screen

Smart Camera

Dual-camera, dual-lens module with liveness detection to prevent photo spoofing; identifies users in 0.3 seconds.

  • Dual-lens liveness detection
  • 0.3s lightning recognition
  • Works with makeup and varied expressions

Specifications

Operating System
Android 11
Display
10.1-inch LCD Touch Screen, 800 × 1280 resolution
Camera
2MP binocular (dual-lens) camera
Face Capacity
100,000 faces (local)
Voiceprint Capacity
10,000 voiceprints
Card Capacity
500,000 cards
Event Records
500,000 event records
Authentication Methods
Face recognition / Card / Password / Voiceprint
Card Types
IC card / Mobile NFC / CPU card (encrypted) / ID card serial number
Network
10/100/1000 Mbps adaptive Ethernet port
Network Protocol
ONVIF / RTSP / TCP/IP / HTTP
Physical Interfaces
LAN × 1 / RS485 × 1 / Wiegand × 1 / Type-C USB × 1
Lock Outputs
Electric lock × 1 / Door magnetic × 1 / Exit button × 1
Alarm I/O
Alarm input × 2 / Alarm output × 1
TF Card Slot
1 × TF slot (≥ 64GB)
Input Voltage
DC 12V-24V, 25W (power supply not included, purchase separately)
Operating Temperature
-30°C to 60°C
Operating Humidity
< 90% RH
Material
Iron / Stainless Steel / ABS Plastic (Optional)
Protection Rating
IP65, indoor / outdoor (sunshade required for outdoor use)
Installation
Wall-mounted, supports horizontal / vertical (mounting plate included)
Dimensions (L × W × H)
265.9 × 157.2 × 18.5 mm
Net Weight
0.875 kg
Gross Weight
1.404 kg

Use Cases

Scenic Areas

Hotels

Pools & Hot Springs

Government Facilities

Step Into the Era of Face Recognition Storage

Contact us for a product demo and a tailored quotation
